Profiles and ladders

A reliable fall protection system is an essential part of safe working at height. We offer high-quality climbing profiles and ladder solutions that combine durability, ease of use and effective fall protection.

The Turvatikas Safety Ladder system’s climbing profiles and ladder solutions are designed to meet the structural requirements and specific needs of each site. Our solutions are suitable for telecom towers, power line poles and high-rise buildings.

Learn more about our profiles and ladders below.

Front page » Products » Profiles and ladders

Vertical Profile B

Features

Safety profile to which the Climbing Carriage will be attached to ensure safe and easy climbing.
To be installed on existing ladder structures.
Tested in accordance with the requirements of EN353-1:2014 + A1:2017.
Delivery lengths 3 m and 6 m.

Weight

3 m – 14,6 kg
6 m – 26,9 kg

Cleat Ladder TBA I

Features

Safety Ladder with alternate steps and integrated safety profile.
Complete ladder structure for e.g. masts, poles, and chimneys.
Delivery length 3 m.

Weight

16,7 kg

Cleat Ladder TBA I with Climbing Barrier

Features

Cleat Ladder TBA I with removable steps and climbing barrier to prevent unauthorized climbing.
To be installed on the lower end of the system.
Step bolts to be screwed open in order to access the ladder.
Delivery length 3 m.

Weight

20 kg

Cleat Ladder TBA II

Features

Safety Ladder with parallel steps and integrated safety profile.
Complete ladder structure for e.g. masts, poles, and chimneys.
Delivery length 3 m.

Weight

19,1 kg

Cleat Ladder TBA with Carriage Entry Point

Cleat Ladder TBA I with Carriage Entry Point

Features

Integrated entry point located in the middle of the profile for inserting the Climbing Carriage.
Available for TBA I and TBA II ladder.
Carriage entry point at the height of 1500 mm.
Delivery length 3 m.

Weight

16,7 kg

Cleat Ladder TBA with Carriage Lead-in

Features

Cleat Ladder TBA with integrated Climbing Carriage lead-in.
Available for TBA I and TBA II ladder.
Carriage lead-in mechanism at the height of 1500 mm.
Delivery length 3 m.

Weight

22,5 kg

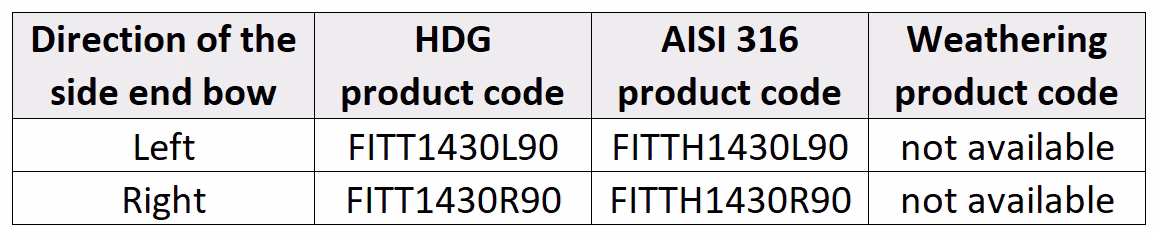

Side-End Bow PTBM

Features

Ideal for access onto level landings.
Compatible with Flange Ladder PTBM.
Straight section 1650 mm, after which profile turns right or left.
Top-end features an integrated Carriage Guide No. 84

Weight

19,2 kg

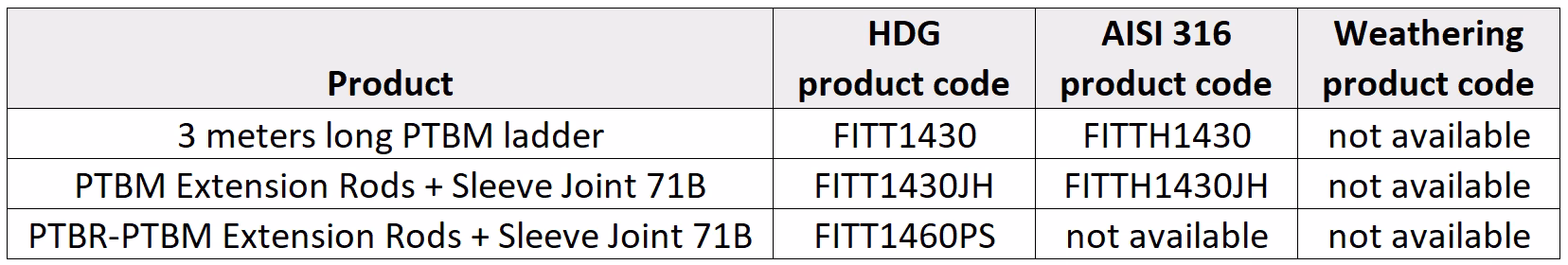

Flange Ladder PTBM

Features

Safety Ladder with handrails and integrated safety profile.
Delivery length 3 m.

Weight

19,5 kg

Flange Ladder PTBR

Features

Safety Ladder with strong handrails and integrated safety profile.
The handrails of the PTBR ladder are load-bearing, making the ladder extremely sturdy.
Ideal for installations with large fastener intervals.
Delivery length 3 m.

Weight

32,1 kg

Flange Ladder PTBR with Removable Steps

Features

Flange Ladder PTBR with removable steps to prevent unauthorized climbing.
To be installed on the lower end of the system.
Incl. 5 step bolts for each side.
Delivery length 3 m.

Weight

32,8 kg

Lower Entry Section PTBJ/PTBR/PTBM

Features

An entry section to enable easier access to the ladder.
To be installed below the Safety Ladder system.
Compatible with Flange Ladders PTBJ, PTBR, and PTBM.

Weight

7,1 kg

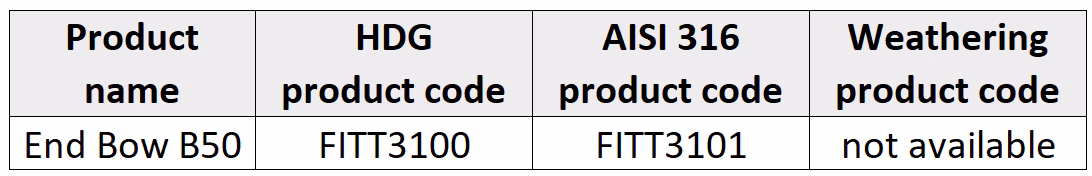

End Bow B50

Features

Ideal for access onto level landings.
Installed onto existing ladders with Vertical Profile B.
Straight section 1650 mm.

Weight

14,6 kg

Side-End Bow B50

Features

Ideal for access onto level landings.
Installed onto existing ladders with Vertical Profile B.
Straight section 1650 mm, after which profile turns right or left.

Weight

14,6 kg
